Tip: You can quickly find the suitable curtain specifications based on the window size.

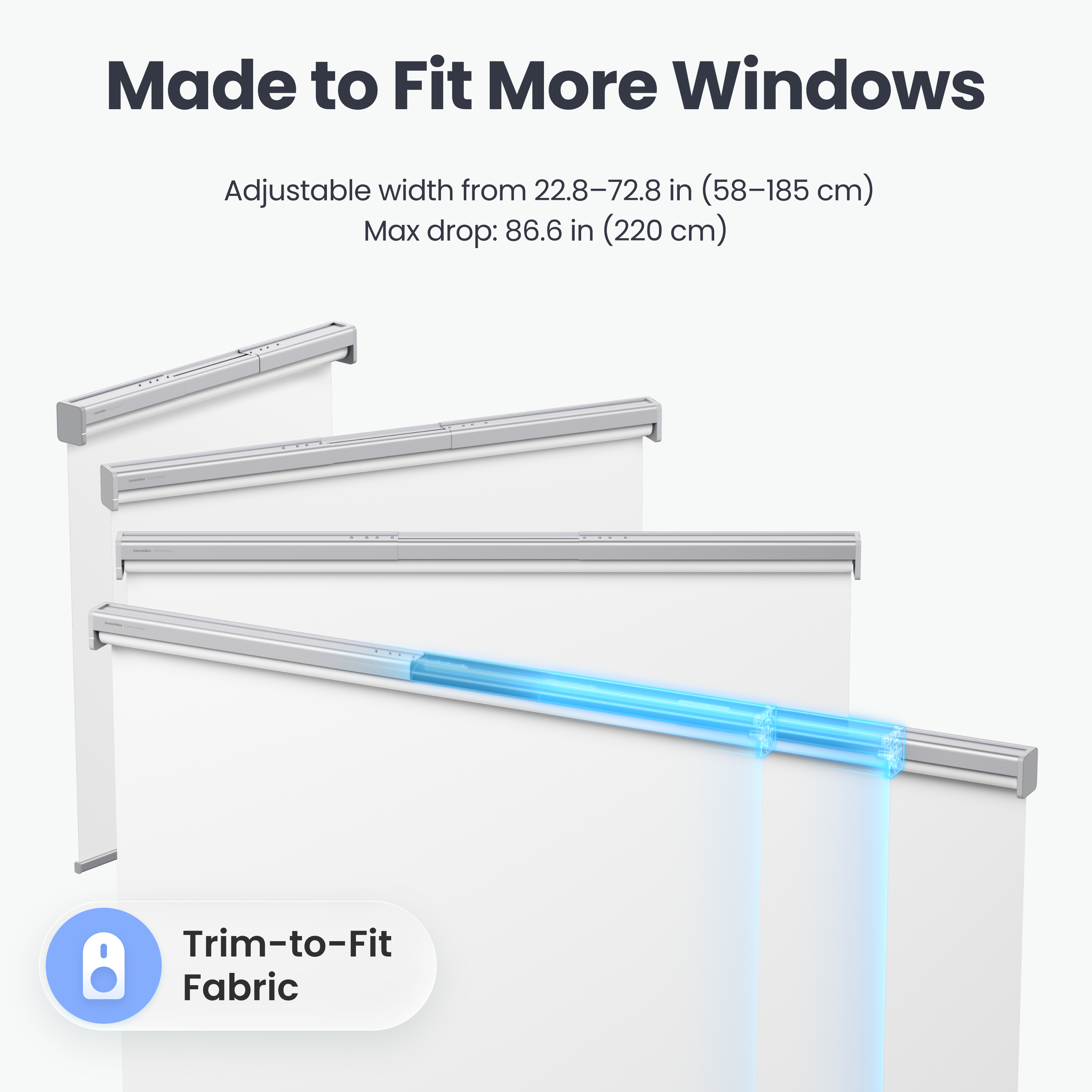

Easily adjustable design.
No customization required, fits your window perfectly.
Cut fabric freely.
Freely cut for a 100% snug fit.

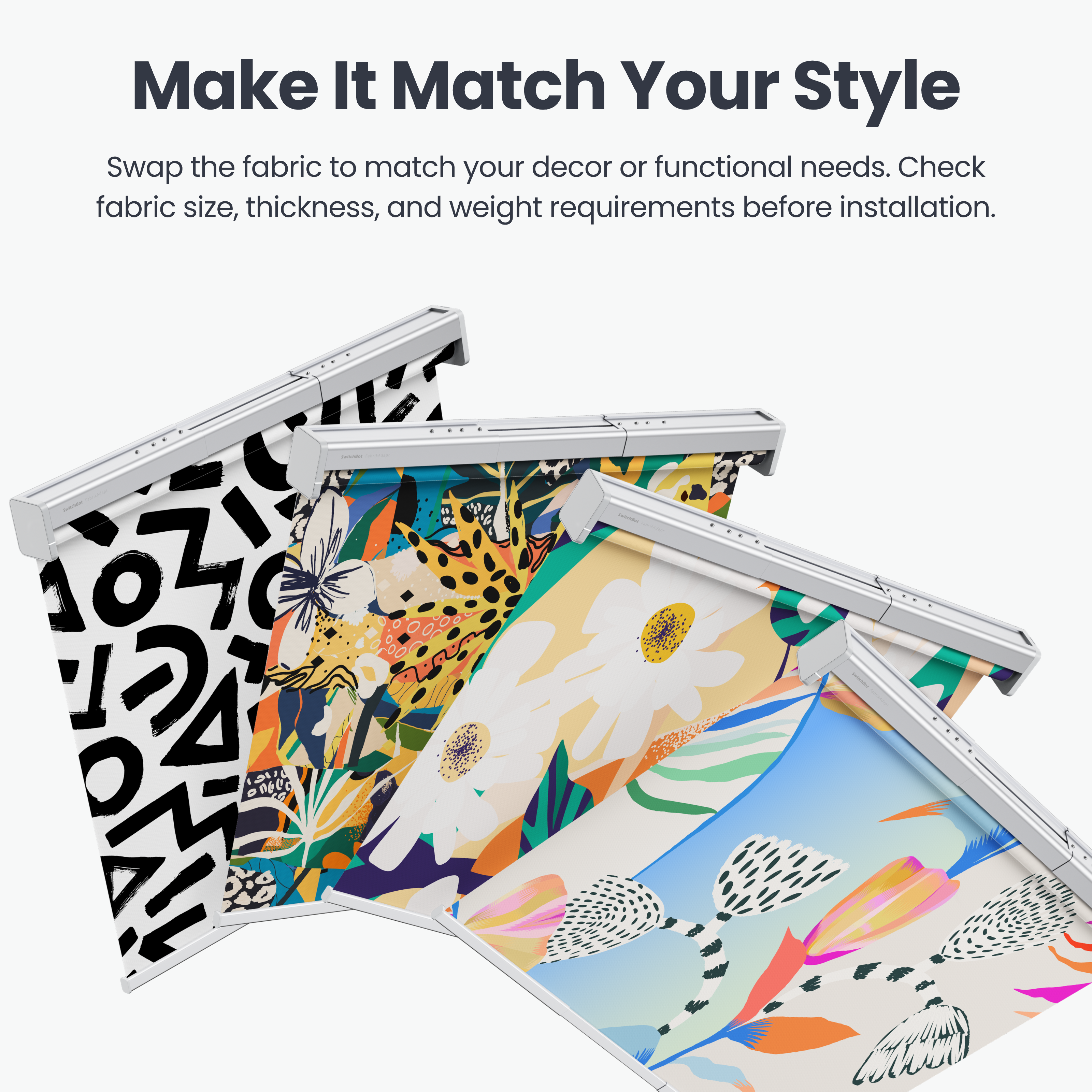

Change curtain fabric.
Fabric cutting accessories are only for use with SwitchBot curtain fabric.
Blocks 100% of Light
Sleep better during the day with less light.
Protects Privacy
Stops people from being able to see inside.
SwitchBot Roller Shade30dB
Whispered Sounds35dB
Other Retrofit Roller Shade48dB
30dB Low Noise Output
Prevents disturbance when in use.
Solar Powered
Sustainable power supply, eliminates the need to charge.
How to Choose Your Perfect Roller Shade Combo
Combo
Roller Shade (Basic)
Roller Shade + Solar Panel

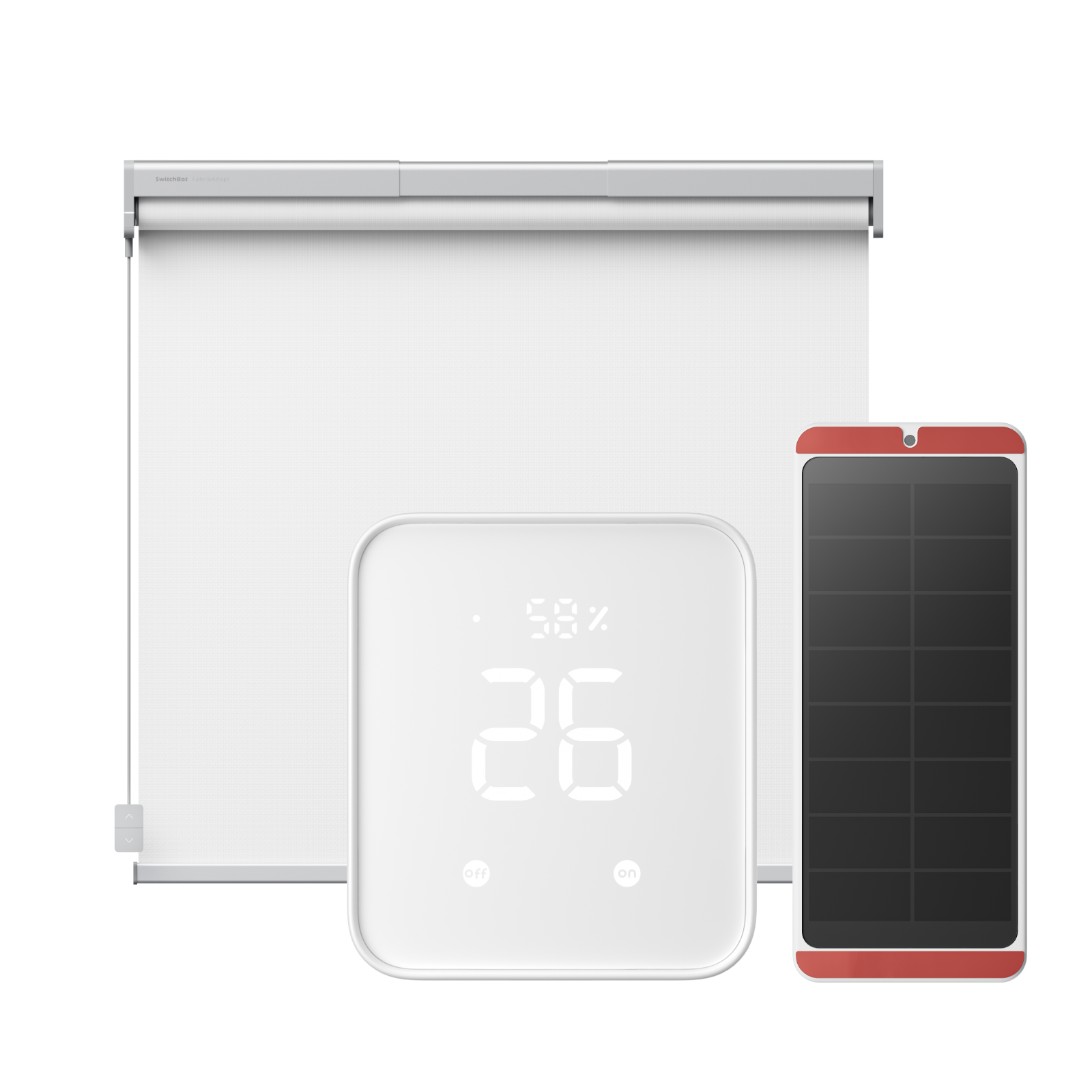

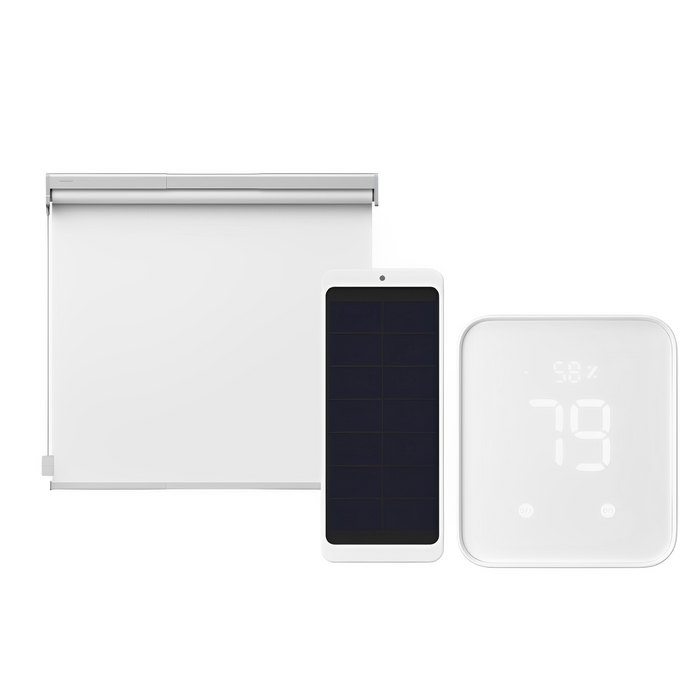

Roller Shade Solar Matter Combo
Solar-Powered
❌
✅
✅
Matter-Compatible
❌
❌
✅
Remote Control
❌
❌
✅
Best For
Renters / Single-room use
Homeowners seeking maintenance-free operation
Smart home enthusiasts (Multi-platform/forward compatibility)
Hear it straight from our users.
Shane Whatley
162K subsrcibers
The reviewer praises the SwitchBot Roller Shades for their excellent adjustability and modern design. They also highlight the product's competitive pricing and compatibility with smart home systems.
TechGuru Andrew
65.2K subsrcibers
The reviewer praises the SwitchBot Roller Shade for its easy installation and quiet operation, making it a convenient addition to any smart home. They also highlight its customizable features and seamless integration with voice assistants for enhanced automation.
Nik & Stevie
642 subsrcibers
The reviewer expresses a positive evaluation of the SwitchBot roller shades, highlighting their ease of installation and smooth operation. They appreciate the integration with smart home systems like Alexa and the ability to automate the shades, making them a convenient addition to their breakfast nook.
S: 756 × 2200 mm (29.8 × 86.6 in.) M: 1056 × 2200 mm (41.5 × 86.6 in.) L: 1356 × 2200 mm (53.4 × 86.6 in.) XL: 1806 × 2200 mm (71.2 × 86.6 in.)
Mounting Bracket Size
7.5 × 4 × 3 cm

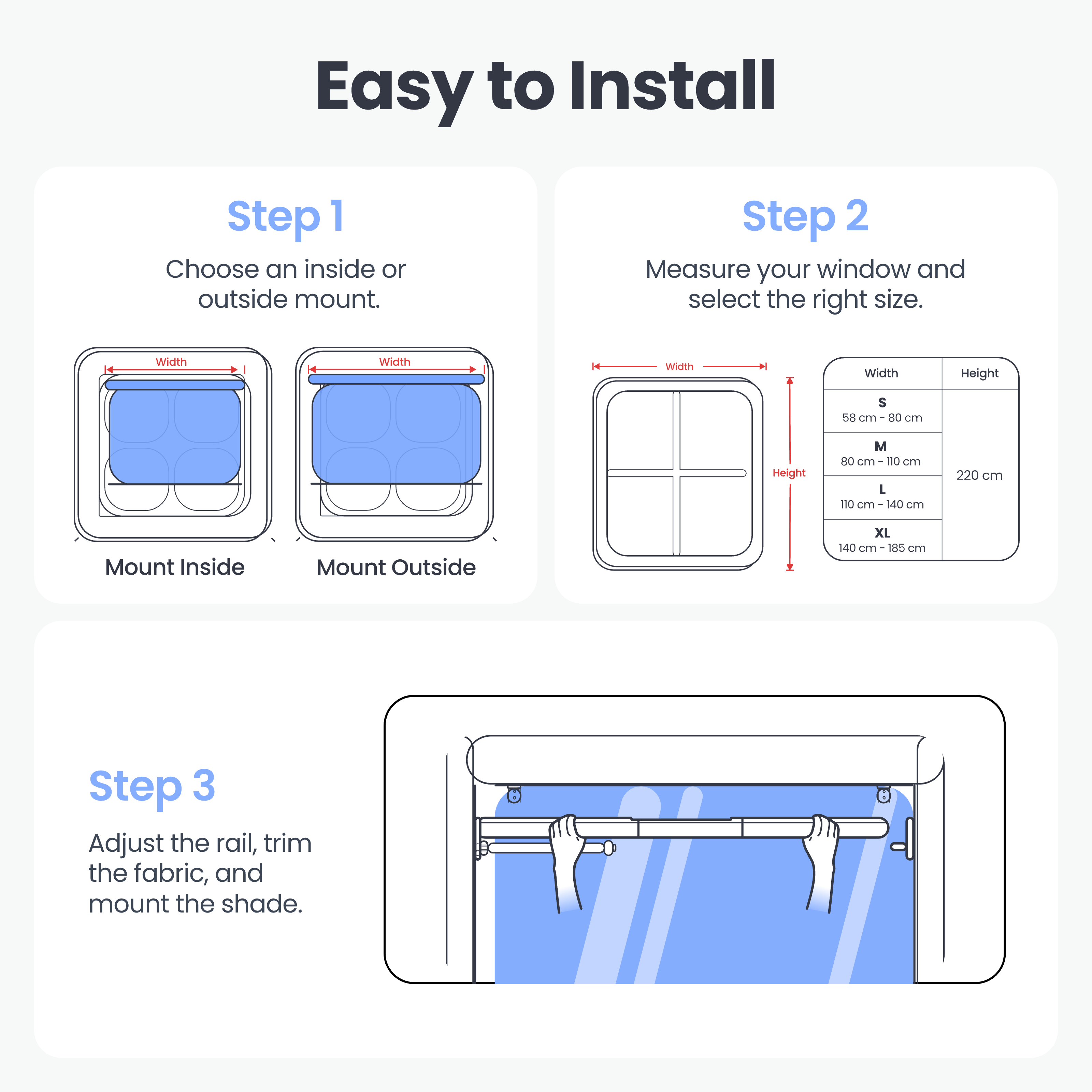

Applicable Environments
1. Inside window frame: Frame depth must be at least 7 cm. For a fully recessed blind, a depth of 9 cm is required. The roller blind should be 0.5 cm narrower than the window to allow for installation. Note: This will result in small gaps on both sides. For complete blackout, consider using the alternative installation method below. 2. Outside window frame: The roller blind should be 10 cm wider than the window to ensure full coverage. 3. The product size shows all the dimensions of the product while the curtain fabric size only shows the dimensions of the curtain fabric. If mounted inside the window frame, the roller blind should be 0.5 cm narrower than the window to allow for installation which will result in small gaps on both sides. For complete blackout, consider mounting outside of the window frame.
Package Weight
S: 3.6 kg M: 4.9 kg L: 5.5 kg XL: 6 kg
Net Weight (Without Fabric)
S: 1.16 kg M: 1.4 kg L: 1.64 kg XL: 2.0 kg
Fabric Weight
S: 1.20 kg M: 1.44 kg L: 1.95 kg XL: 2.55 kg
Package Size
S: 847.99 × 121.3 × 141.8 mm M: 1147.99 × 121.3 × 141.8 mm L: 1447.99 × 121.3 × 141.8 mm XL: 1897.9 × 121.3 × 141.8 mm
Color
Headrail: Silvery
Fabric: White/Grey
Material
Aluminum alloys, ABS
Coating
Anodizing, sandblasting
Functional Parameters
System Compatibility
Android 5.0+, iOS 11.0+, watchOS 2.2+
Operating Temperature
0°C~45°C
Operating Humidity
10~95% RH
Battery Capacity
2 built-in 18650 lithium batteries 2600 mAh
Input
5V DC ⎓ 1A

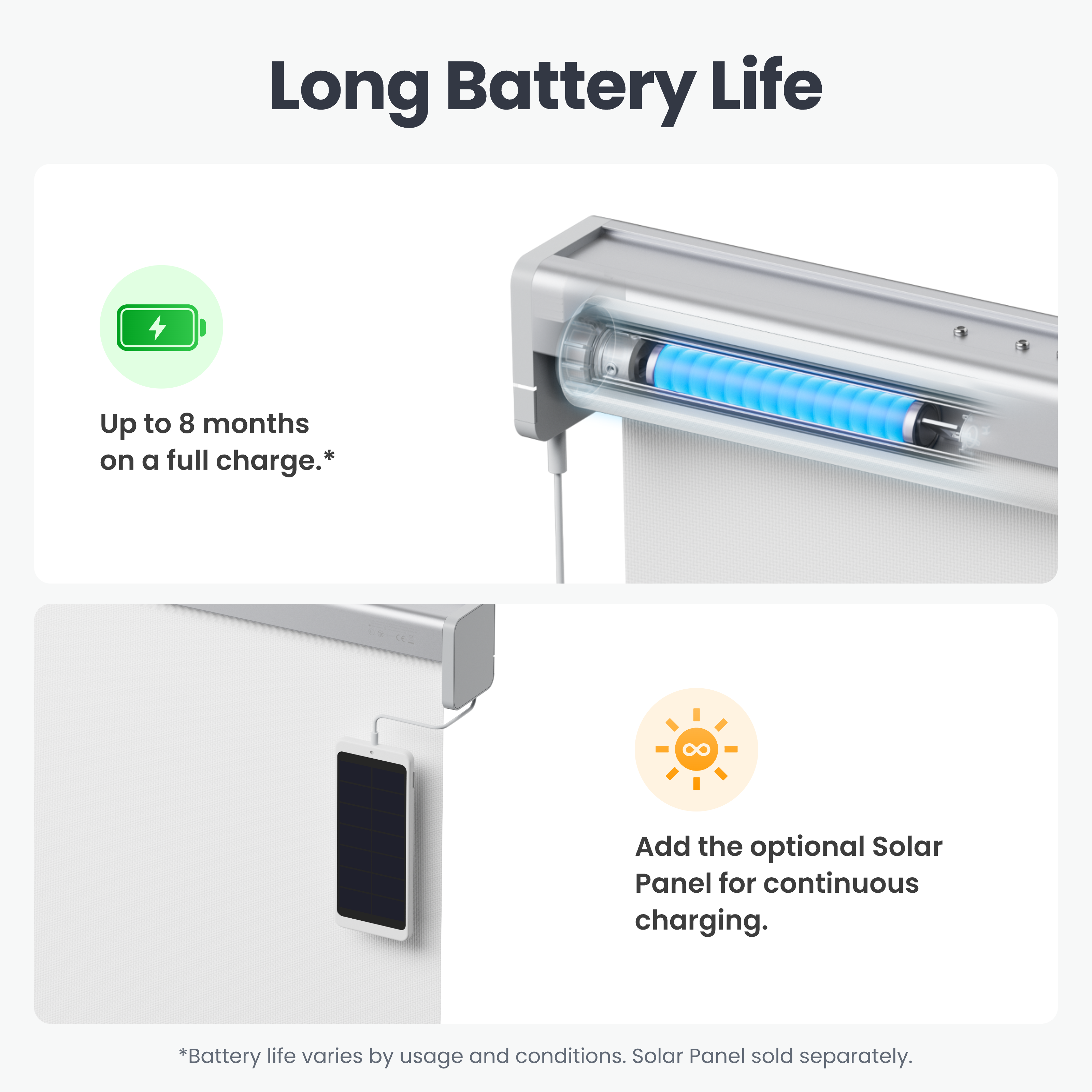

Battery Life
8 months (Note: The battery life is tested under the following conditions: an ambient temperature of 25 ºC, a height of 1.85 m, a product weight of 4 kg, and rolling up and down once per day. Actual battery life may vary depending on usage.)
BLE
≥5.0（LongRange）
Connectivity Range
Max. 80 m without obstacles
Third-party Services
Alexa, Google Assistant, Siri Shorcuts, IFTTT, SmartThings, Matter (SwitchBot Hub required)
Operating Mode
Standard Mode QuietDrift Mode
Operating Noise
Standard Mode: ≤35dB QuietDrift Mode: ≤ 30dB
Operating Speed
Standard Mode: ≤30s QuietDrift Mode: ≤200s (Refers to the time for one session of opening or closing; height: 2m)
FAQ
How to Install SwitchBot Roller Shade (Video)?
Assembly and Installation Tips: -> Ensure your wall thickness is at least 4 cm for secure installation. -> Verify that the wall supports a load of 10 kg or more when mounted with the bracket. -> Use appropriate fixing devices that are compatible with the material of your wall or ceiling.
Can I cut the Roller Shade fabric?
Yes you can cut the SwitchBot's Roller Shade fabric. However, using custom fabric is not recommended.
Can I Use Multiple SwitchBot Roller Shades Side by Side for a Wide Window?
Yes. You can freely combine S, M, L, and XL Roller Shades to fit the width of your window. However, when connecting two or more Roller Shades, please be aware that light gaps may appear at the seams. This is due to slight length discrepancies between the roller mechanism and fabric at the upper connection points of multiple units.
Can I Use SwitchBot Remote to Open and Close SwitchBot Roller Shade?
Yes, you can add open and close actions for the Roller shade to the Remote by tapping it in the SwitchBot app and assigning them to the convex and concave buttons.

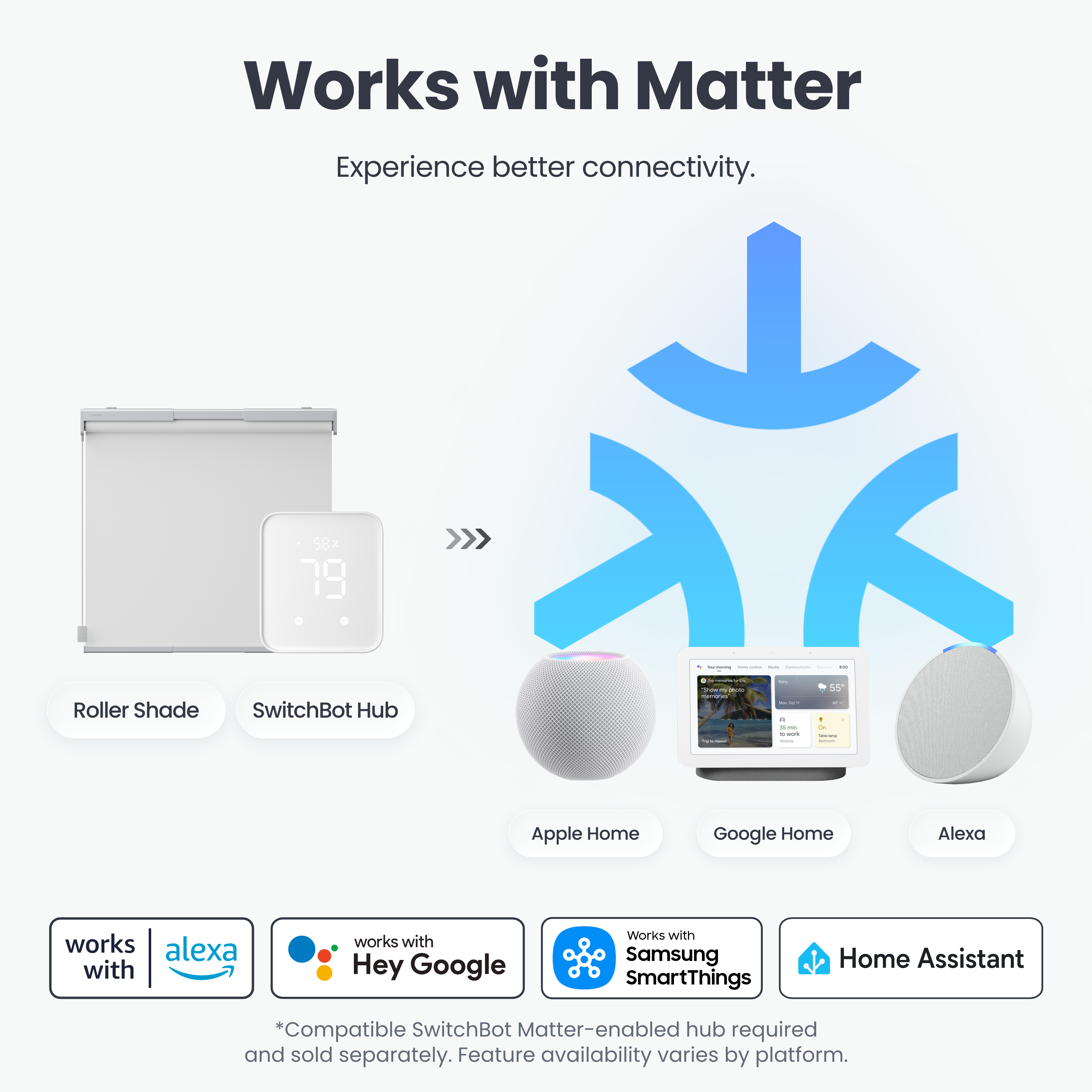

Matter Compatibility for SwitchBot Roller Shade
You can sync your Roller Shade with the Apple Home app or Google Home app as a secondary device using Hub 2 or Hub Mini Matter Enabled. The Apple Home app allows for fully closing, fully opening, and opening/closing to a specific percentage.
Instructions for SwitchBot Roller Shade Group Feature
SwitchBot Roller Shades can be grouped for easier control, supporting up to 8 devices in one group.
When you create a group, the first device you select becomes the main device, while the others are designated as secondary devices. Once grouped, all devices will respond together, opening or closing simultaneously and adjusting to the same percentage level.
How Long Does It Take to Fully Charge SwitchBot Roller Shade?
SwitchBot Roller Shade controller (2 meters) has a Type C charging port. It takes approximately 8 hours to fully charge the battery.
Please note that using a charging cable longer than 2 meters will result in a longer charging time for the battery.
How to Charge SwitchBot Roller Shade
You can charge your SwitchBot Roller Shade using the following methods:
1. Using the controller charging port for convenient charging.
2. Install the dedicated solar panel (sold separately) designed for SwitchBot Roller Shade for charging. When you connect the dedicated Solar Panel to the Roller Shade, the sun icon will appear in the app.
3. Use a 5V1A charging adapter (not included) and a charging cable (not included) to charge directly through the solar panel Type-C port. A ⚡ icon will be displayed to indicate that the device is charging.
